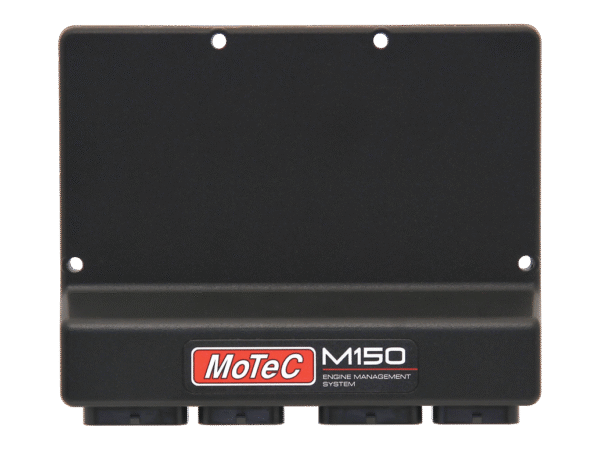

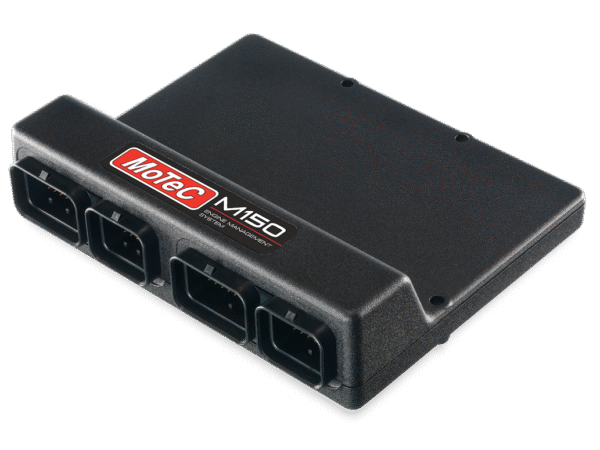

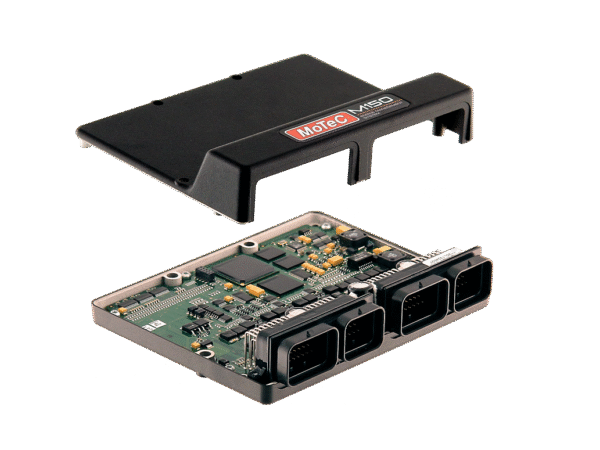

MoTeC M150 Engine Management System

Description

Advances in technology have increased the demands on a vehicle’s components, especially the ECU. This demand has reached the point where a single firmware to ECU configuration cannot meet the market’s ECU requirements (even with increased capacity and processor speed).

The M1 series was conceived by MoTeC to overcome this one-to-one, firmware to ECU limitation, by designing a system where operational efficiency, advanced features and flexibility are its primary objectives. At its core, M1 provides the ability to develop a suite of flexible and tailored solutions (packages), making it ideal for any application (however complex) and category management.

Key advantages of M1 systems:

• Latest generation high performance processor
• Large logging memory, fast Ethernet downloads
• Compact and lightweight in robust magnesium enclosures
• Supports direct injection and port injection applications
• Supports advanced logging features including Pro Analysis (i2 Pro)
• Advanced security system, incorporating an anti-tampering microprocessor
• Access log-in levels for multiple users
• Suitable for modern engines with DBW, Cam Control and multiple CAN buses
• Advanced logging features, high speed, multiple logs (with access logins)
• I/O expansion using E816, E888 expanders
• Flexible tuning software
• Programmable digital input system for Ref/Sync, wheel speeds etc.
• Programmable trigger levels, diagnostics
• All Low Side and Half Bridge outputs have PWM capability

M150 ECU – 12Injectors, 12 Ignitions, 17 AV Inputs, 6 AT Inputs, 4 Digitals, 12 Universal Digitals, 5 Bridge Outputs, 4 Knock Inputs, 10 Half Bridge Outputs, 3 CAN Bus, 1 LIN Bus, 1 Ethernet, 3 Axis Accelerometer built in, 6 Low Side Outputs, RS232 Comms

This ECU includes MoTeC GPR General Purpose Race Firmware and standard included Level 1 Diagnostic Logging
