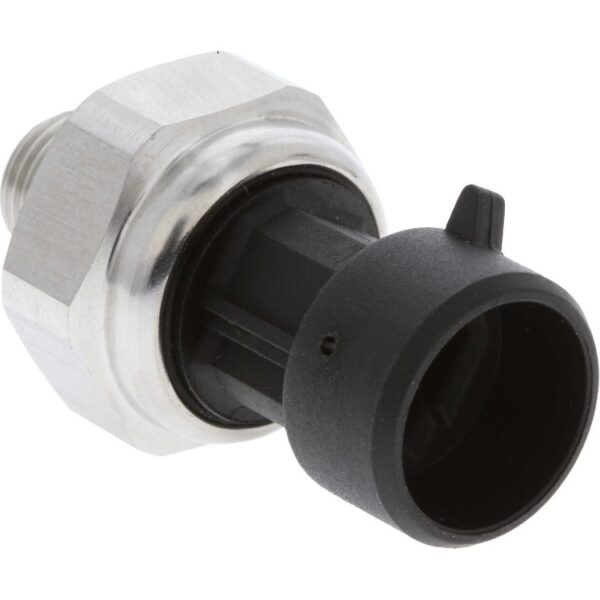

Trensor 3FP Pressure Sensor

Description

Trensor’s 3FP™ line of vehicle electronics are ultra-premium pressure sensors for the harshest automotive environments.  These sensors are widely used across the performance, racing, off-road, marine and specialty vehicle markets.

Industry leading features include:

• 3-pin APTIV® (Packard®/Delphi®) electrical interface in high-grade thermoplastic.
• High-grade stainless steel pressure port with 22mm hex and 1/8-27 NPT threaded mechanical interface.
• High accuracy across real-life working temperature range.
• Atmospheric reference vent with waterproof & dustpoof membrane.
• Compatible with most fuels, oils, and liquid/gas media.
• Sensor Linear Output Range .5 volts to 4.5 volts (Range Min/Range Max)3FP™ Pressure Sensors are the most accurate sensors for race applications on the market today:-40°F to -4°F = 1.5% FSO
  -4°F to 185°F = 1% FSO
  185°F to 275°F = 1.5% FSO
